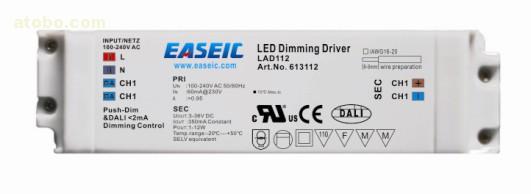

产品名称：DALI 接口调光12W LED驱动电源
LAD112 Constant current converter 100-240V AC


Highlights:
 Constant Current 350mA PWM Output
 DALI digital control input, dimming control LED modules
 1 addressable output channel
 Dimming range from 0-100%，LED start at 0.1% possible
 Suitable for DC supply
 Over temperature protection
 Safety class 2




Approved For Lamps: 1W X 1~12LED
1.3WX1~9 LED
Type LAD112
Article Number                                      613112
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 90 120 240 Vac
Input Frequency 47 50-60 63 Hz
Input Current@120VAC - 110 - mA
Power Factor@120VAC - 0.95 -
Output Power(1 Channel Pout Total) 0.7 1 x 1-12 1 x 13 W
Output Voltage 2 3-36 41 Vdc
Output Current 315 350 380 mA
Peak Current - <500 - mA
Dimming Control (Dimmer) DALI
Case Temp. - - 80 ℃
Ambient Temp. -25 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
