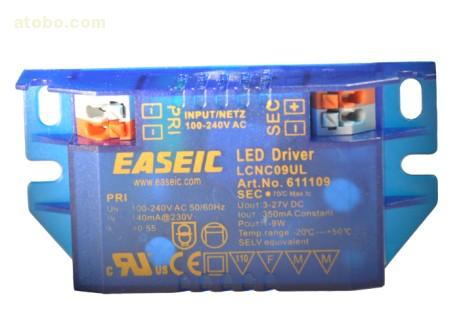

产品名称：LED恒流输出 350MA 驱动电源 9W
LAN109AConstant current converter 100-240V AC


Highlights:
 Constant Current 350mA Output
 universal input voltage range
 Over temperature protection
 Safety class 2




Approved For Lamps: 1W X 1~9LED
1.3WX1~7LED
Type LAN109A
Article Number                                      611109
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 90 120 277 Vac
Input Frequency 47 50-60 63 Hz
Input Current@120VAC - 215 - mA
Power Factor@120VAC - 0.55 -
Output Power(Pout Total) 0.7 1-9 10.8 W
Output Voltage 2 3-31 32 Vdc
Output Current 315 350 390 mA
Peak Current - <500 - mA
Case Temp. - - 80 ℃
Ambient Temp. -20 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
