产品名称：DALI 接口调光144W，小功率LED驱动电源

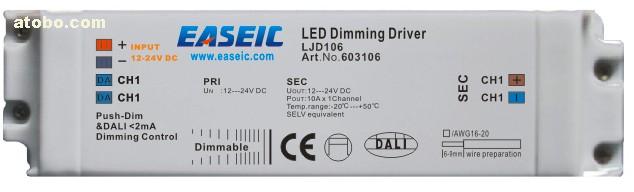

LJD106 Constant voltage converter 12-24V DC
•

Highlights:
 Constant voltage 24V PWM Output
 DALI digital control input, dimming control LED modules
 1 addressable output channel
 Dimming range from 0-100%，LED start at 0.1% possible
 Suitable for DC supply
 Over temperature protection
 Safety class 2




Approved For Lamps: Low Power LED

Type LJD106
Article Number                                      603106
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 12 24 - VDC
Input Current@24VDC - 10 - A
Output Power(1 Channel Pout Total) 1 1x 144 - W
Output Voltage - 24 Vdc
Output Current - 1x10 - A
Dimming Control (Dimmer) DALI
Case Temp. - - 80 ℃
Ambient Temp. -25 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
