产品名称：0/1-10V 接口调光360W，小功率LED驱动电源

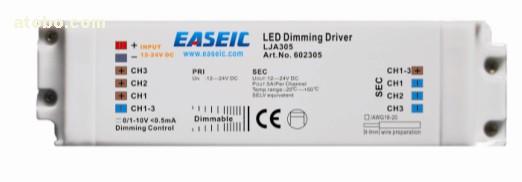

LJA305 Constant voltage converter 12-24V DC


Highlights:
 Constant voltage 24V PWM Output
 Standard DC0/1-10V control interface
 Dimming range from 0-100%，LED start at 0.1% possible
 Suitable for DC supply
 Over temperature protection
 Safety class 2




Approved For Lamps: Low Power LED

Type LJA305
Article Number                                      602305
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 12 24 - VDC
Input Current@24VDC - 15 - A
Output Power(3 Channel Pout Total) 1 3x 120 - W
Output Voltage - 24 Vdc
Output Current - 3x5 - A
Dimming Control (Dimmer) 0 - 10 V
Case Temp. - - 80 ℃
Ambient Temp. -25 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
