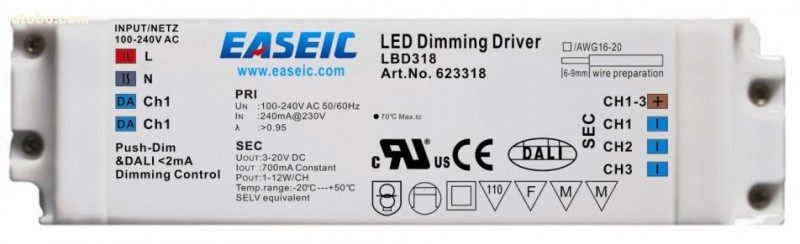

产品名称：DALI 接口调光驱动器54W LED驱动电源
LBD318 Constant current converter 100-240V AC


Highlights:
 Constant Current 700mA PWM Output
 DALI digital control input, dimming control RGB modules
 3 addressable output channel
 Dimming range from 0-100%，LED start at 0.1% possible
 Suitable for DC supply
 Over temperature protection
 Safety class 2




Approved For Lamps: 3W X 1~6LED

Type LBD318
Article Number                                      623318
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 90 120 240 Vac
Input Frequency 47 50-60 63 Hz
Input Current@120VAC - 500 - mA
Power Factor@120VAC - 0.95 -
Output Power(3 Channel Pout Total) 0.7 3 x 3-18 3 x 18 W
Output Voltage 2 3-20 21 Vdc
Output Current 650 700 715 mA
Dimming Control (Dimmer) DALI
Case Temp. - - 80 ℃
Ambient Temp. -25 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
