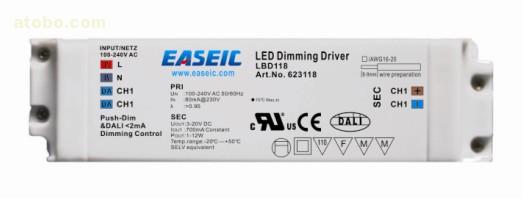

产品名称：DALI 接口调光18W LED驱动电源
LBD118 Constant current converter 100-240V AC


Highlights:
 Constant Current 700mA PWM Output
 DALI digital control input, dimming control LED modules
 1 addressable output channel
 Dimming range from 0-100%，LED start at 0.1% possible
 Suitable for DC supply
 Over temperature protection
 Safety class 2




Approved For Lamps: 3W X 1~6LED

Type LBD118
Article Number                                      623118
Technical data:
Parameter Min.* Nom.* Max. Unit
Input Voltage Range 90 120 240 Vac
Input Frequency 47 50-60 63 Hz
Input Current@120VAC - 150 - mA
Power Factor@120VAC - 0.95 -
Output Power(1 Channel Pout Total) 0.7 1 x 3-18 1 x 18 W
Output Voltage 3 3-20 21 Vdc
Output Current 650 700 715 mA
Dimming Control (Dimmer) DALI
Case Temp. - - 80 ℃
Ambient Temp. -20 - 50 ℃
Protection                  Short Circuit Protection
                            Overload Protection
                          Over Heat Protection
*Valid at ambient temperature of 25℃
